Explore the Solution

Watch this short demo of the working prototype

How it works

This solution automates the pill retrieval process from bottles and efficiently organizes them into a weekly pill container, following a pre-programmed medication schedule. The XYZ Gantry robot is responsible for extracting pills from the bottles. To accommodate different pill thicknesses, the device's end effector utilizes a spring-loaded vacuum tip that adjusts automatically. In addition, the vacuum picker is mounted on a slide that self-regulates to match the fill level of the bottles.

Patent Pending, Application number 63/536,915

Overview

Features

Positioning Stage

Vaccum Control Solenoid

Positioning Stage



Customizable XYZ stage to load up to, but not limited to 100 medication containers

Pickup Slide

Vaccum Control Solenoid

Positioning Stage

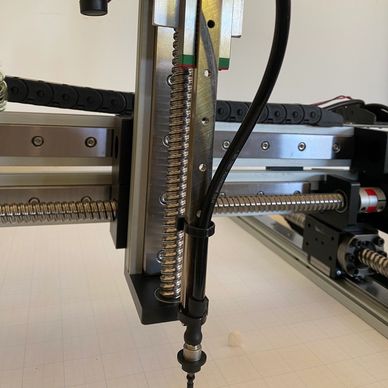

  Z stage with slide to accommodate height of pills in bottle

Vaccum Control Solenoid

Vaccum Control Solenoid

Vaccum Control Solenoid

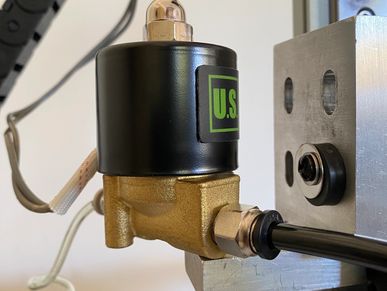

Solenoid to switch vacuum on/off to pickup and drop pills

Vacuum Nozzle

Vacuum Nozzle

Vaccum Control Solenoid

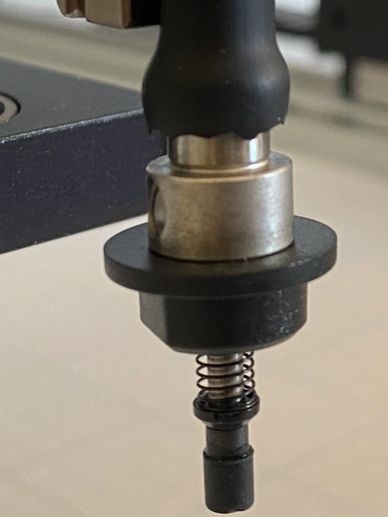

  Spring loaded Vacuum nozzle to pick up any sizes/shapes of pills

Display

Vacuum Nozzle

Display

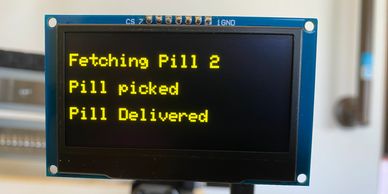

  Visual representation of the actions

Camera

Vacuum Nozzle

Display

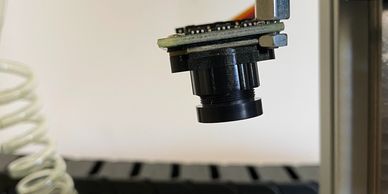

(Future State) Camera to guide picker, visual confirmation of pill pickup, pill identification, detect empty container.

Advisor

Dr. Gopi Ayer, MD

Dr. Gopi Ayer, MD is an Internal Medicine Specialist in Los Gatos, CA. He is affiliated with Good Samaritan Hospital.
